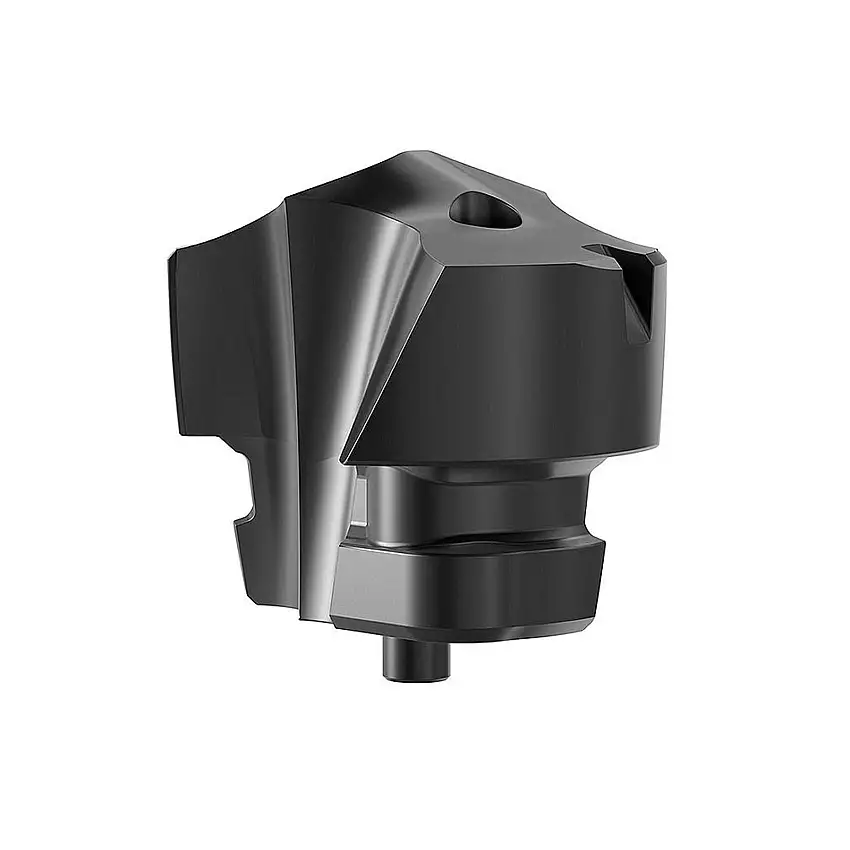

The KSEM HPG modular drill insert enables high metal removal rates and superior tool life in steel applications. The HPG geometry utilises reinforced cutting edges and good chip forming to improve tool life, due to high wear and edge chipping resistance. KCPM45 grade combines a very tough, fine-grain carbide substrate with advanced TiAlN coating for machining steel even in the most demanding conditions.
Features & Benefits
- KSEM system enables very aggressive feed rates in many applications to enable extremely high productivity levels.
- Economical and reliable system for drilling in intermediate diameter ranges.
- KCPM45 combines a very tough, fine-grain carbide substrate with an advanced multilayer TiAlN coating. It is capable of machining steel even in the most demanding conditions.
- Robust pocket design for increased insert and holder life.
- Four-wall pocket provides insert stability.
- HPG geometry works with low cutting and feed forces and provides very good centring.
- Reinforced cutting edges and good chip forming improve tool life due to high wear and edge chipping resistance.
- Material snap back, stacked plates, cross holes, and inclined exits are some examples of where KCPM45 HPG edges will do a great job in your operations.
- Use KCPM45 HPG cutting edges as an effective alternative in stainless steel as well.
Specification
| Category | Hole Making | Sub Category | Indexable Drills | Sub Category 2 | KSEM Drill | Diameter (mm) | 38.1 | Shank (mm) | 32 | Diameter (Inch) | 1-3/8″ | Flute Length (mm) | 40 | Overall Length (mm) | 155 | Shank Length | 60 | Connect Code | 10 | Depth | 10xD | Shank Type | Whistle Notch | Applicable Materials | Steel, Stainless Steel | Performance | 5 | Through Coolant | Yes | Self Centring | Yes | Brand Range | KSEM Drill | Brand | Kennametal |
|---|
