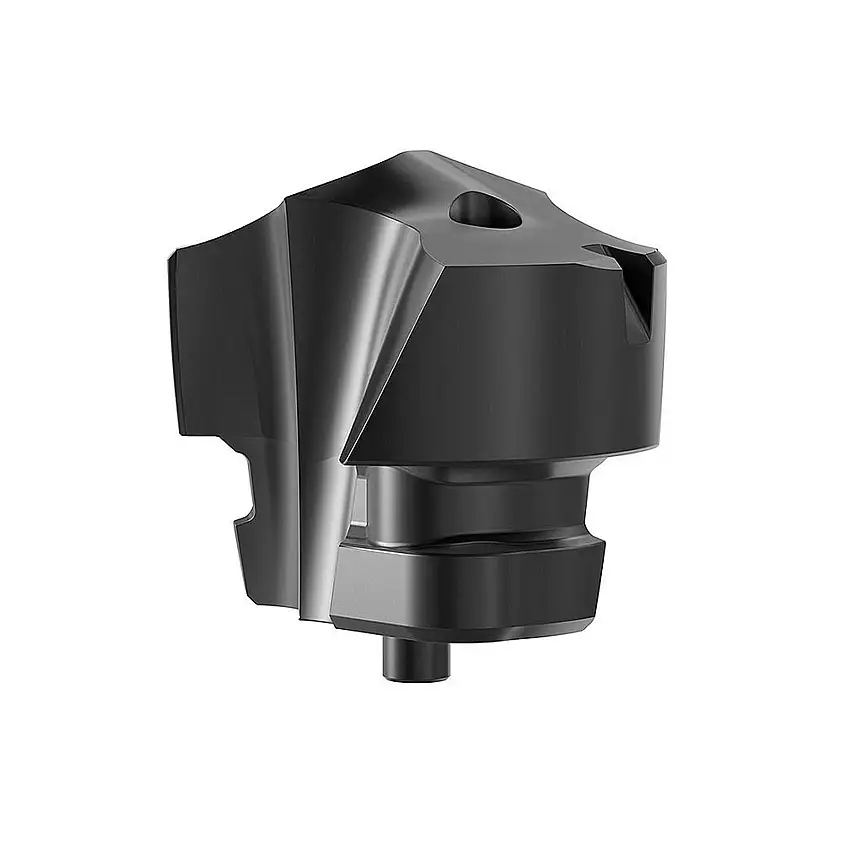

The KSEM HPG modular drill insert focuses on tool life and reliability in cast iron materials, offering increased feed forces and productivity. HPPCL geometries contains a corner chamfer and strong edges to create high quality holes with an increased tool life. KC7410 grade is a multilayer AlCr-based coating which is extraordinarily wear resistant in cast iron applications due to its high heat hardness.
Features & Benefits
- KSEM system enables very aggressive feed rates in many applications to enable extremely high productivity levels.
- Economical and reliable system for drilling in intermediate diameter ranges.
- KC7410 is a multilayer AlCr-based coating over fine-grain carbide. It is extraordinarily wear resistant in cast iron applications due to its high hot hardness.
- Robust pocket design for increased insert and holder life.
- Four-wall pocket provides insert stability.
- KSEM KC7410™ HPCCL focuses on tool life and process reliability in cast iron materials in all cast iron materials. It offers increased feed forces in increases your productivity.
- HPCCL geometry offers a wide and strong HP-style chiseled edge that prevents material quenching in the centre, enabling high feed rates.
- With a corner chamfer and strong edges, it creates high quality holes and increased tool life.
- Use KC7410 HPCCL in all cast iron applications, especially when working in difficult conditions and CGI or ADI irons.
Specification
| Category | Hole Making | Sub Category | Indexable Drills | Sub Category 2 | KSEM Drill | Diameter (mm) | 31.75 | Shank (mm) | 32 | Diameter (Inch) | 1-9/32″ | Flute Length (mm) | 40 | Overall Length (mm) | 155 | Shank Length | 60 | Connect Code | 8 | Depth | 10xD | Shank Type | Whistle Notch | Applicable Materials | Cast Iron | Performance | 5 | Through Coolant | Yes | Self Centring | Yes | Brand Range | KSEM Drill | Brand | Kennametal |
|---|
