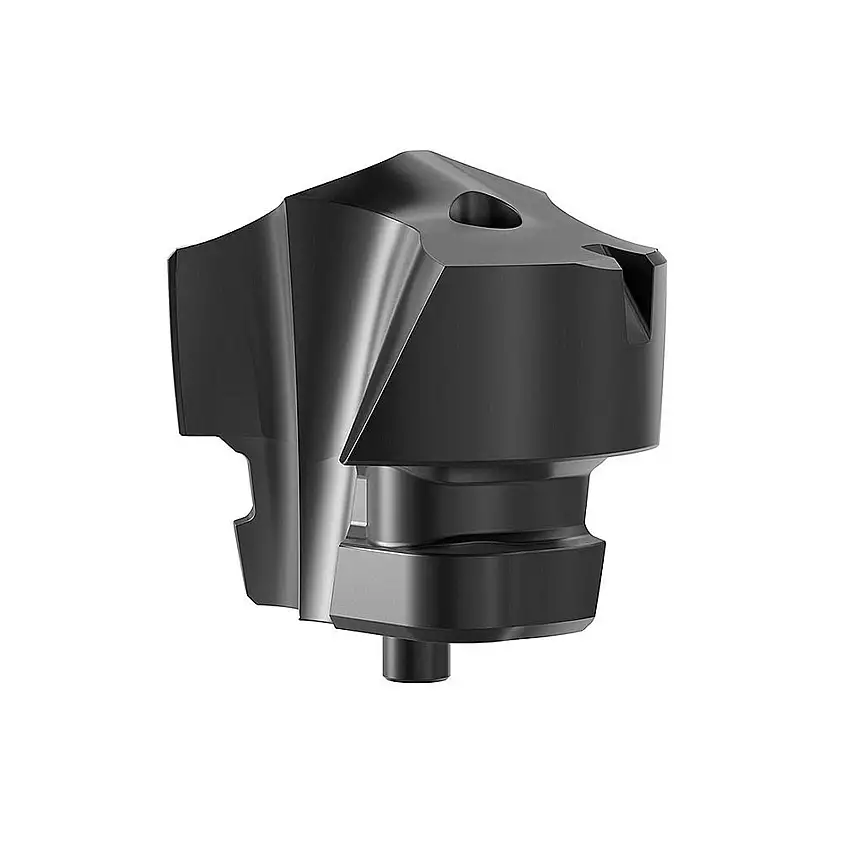

The KenTIP FS HPC modular drill insert has a point geometry specifically for drilling cast iron. It features a large corner radius to prevent chipping and reduces exit burrs when drilling through holes. The insert’s material-specific, self-centering design enables excellent hole quality and optimum tool performance. With enhanced thermal stability, and great centring capabilities without precentring, the KenTIP FS offers the perfect fusion of a solid carbide and indexable drill.
Features & Benefits
- Delivers substantial cost savings and process efficiencies on the shop floor.
- HPC-point geometry for all cast irons.
- 4-margin land ensures hole straightness.
- Large corner radius prevents chipping and reduces exit burrs when drilling through holes.
- KC7410 is an AlCr PVD multilayer coating.
- Superb wear resistance.
- Taper interface uniquely designed for highest rigidity clamping.
- Retention lock prevents insert pullout.
- With internal coolant.
- 3 point geometries. 3 high performance grades. 3 different shank styles.
- The perfect fusion of a solid carbide drill and an indexable drill.
Specification
| Category | Hole Making | Sub Category | Indexable Drills | Sub Category 2 | KenTIP FS Drill | Diameter (mm) | 17.3 | Diameter Range (mm) | 17.3-25.999 | Flute Length (mm) | 312 | Overall Length (mm) | 398 | Shank Length | 56 | Connect Code | V | L5 | 4.4 | Shank Type | Weldon | Applicable Materials | Cast Iron | Performance | 5 | Through Coolant | Yes | Self Centring | Yes | Brand Range | KenTIP Drill | Brand | Kennametal |
|---|
