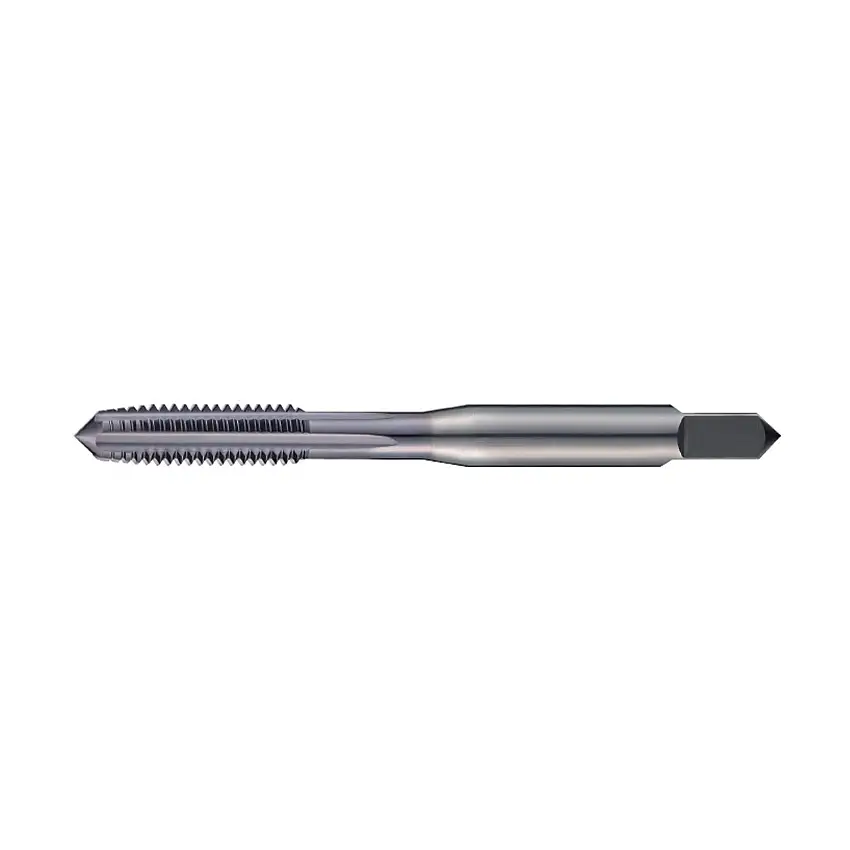

YG-1 Metric Coarse carbide taps provide much longer tool life than conventional HSS taps due to the increased hardness. These carbide taps come with a TiCN coating and are ideal for tapping hardened steels HRC50-60.
Features & Benefits
- Metric Coarse
- More tool life than HSS taps
- Suitable for high speed tapping
- Must be used with a synchro or tension compression tap chuck
- Same tap can be used for blind and through holes
- TiCN coated
- Ideal for Cast Iron
Specification
| Category | Threading | Sub Category | Machine Taps | Thread | M10 | Sub Category 2 | Solid Carbide Machine Taps | Shank (mm) | 10 | Pitch | 1.5 | Flute Length (mm) | 22 | Overall Length (mm) | 100 | TPI | 14 | Flutes | 3 | L3 | 54 | Drill Diameter | 15.1 | Square | 8 | Oil Grooves | No | Brand | YG-1 |
|---|
